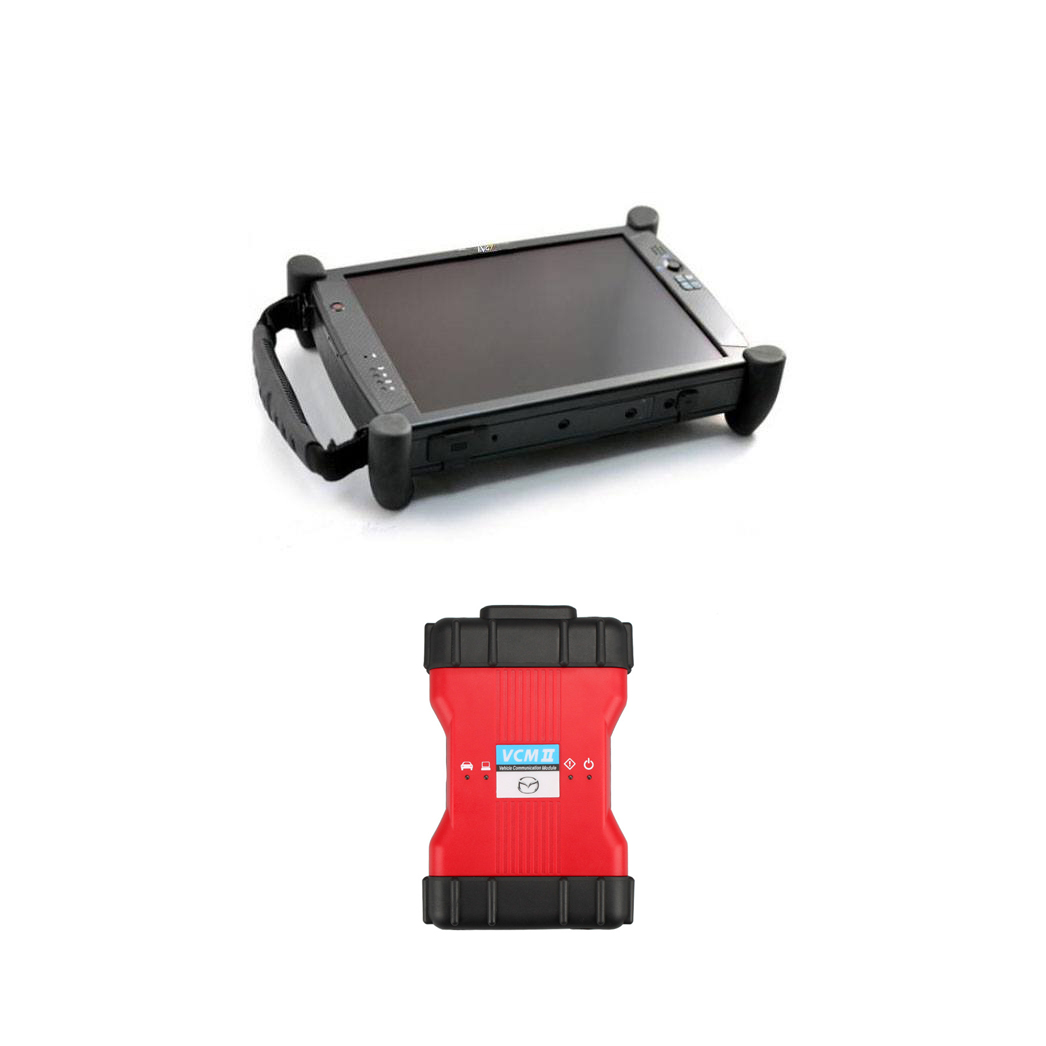

[SET PRODUCT] [READY TO USE]
– VCM II Mazda Diagnostic Tool
– EVG7 DL46/HDD500GB-SSD256GB/DDR4GB (With Software HDD/SSD VCM II Mazda IDS-106)
OS (Operating System): Win 7
VCM II Mazda Diagnostic System
The VCM II is the new Mazda OEM diagnostic tool.
It provides dealer-level diagnostics using the IDS software.
The VCM II is the brand new diagnostics interface from Mazda for use with the Integrated Diagnostics Software (IDS).
The VCM II and IDS, along with a dedicated laptop, provides full dealer diagnostic capabilities for most 16 pin Mazda.
A fantastic new function of the VCM 2 is its ability to communicate wirelessly with your laptop or computer without any hardware or software upgrades.
This allows technicians to work on vehicles remotely while the VCM II is connected directly to the vehicle.
The VCM II will be required for all Mazda vehicles and is backwards compatible with most 16 pin Mazda.
It supports the Vehicle Measurement Module (VMM) and new Customer Flight Recorder (CFR).
The VCM II has shock resistant rubber ends, making it suitable for garage and workshop environments.
The CFR replaces the Vehicle Data Recorder (VDR).
The CFR is an optional cable that allows the VCM II to monitor and record live data streams.
This provides an advantage for technicians when diagnosing intermittent problems.
Mazda VCM II Features & Specifications
Automatic vehicle recognition
Read & Clear Diagnostic Trouble Codes (DTCs)
Live Data-stream with Recording & Playback Functions for Main ECUs
Guided Fault Finding
New Software Re-flash for Existing ECUs
Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
Program New Keys
Set, Adjust or Remove Speed Governors
Steering Angle Resets
All Other Dealer Functions
CFR Cable (VP-2) for VCMII (Choice)
CFR ( Customer Flight Recorder )
The Customer Flight Recorder CFR is a cable that allows the VCMII to monitor and record live
data streams from a vehicle. This provides and advantahe for technicians when diagnosing intermitten problems
EVG7 – DL46/HDD500GB-SSD256GB/DDR4GB
This tablet PC is designed especially only for the professional garage and mechanic car repair services. The key feature of this PC is to be full-compatible for vehicle diagnostic devices’ software. This tough and rugged tablet PC is designed to use especially in the environment of vehicle repairing garage services. We installed and tested all kind of automotive, truck and bus diagnostic softwares. You can install and run all diagnostic softwares without any alert and error.
Mark : EVG7
Model : DL46
OS : Win 7
Processor : Intel Celeron 1037(Dual – 1.8Ghz/L3 2M)
DDR : 4GB
STORAGE : Sata HDD 500GB / Sata SSD 256GB (Optional)
LCD : 10.4 Inch The resolution of the 1024×768
Graphics : touchscreen widescreen LED backlight
The core graphics Intel HD Graphics
Speakers : Built-in Speakers
Wireless : 802.11b/g/n
LAN : The built-in 10-100M card
Bluetooth : BT2.0 , 4.0
USB : USB3.0 / Mini USB / 2 x USB2.0
Card Reader : TF Card Reader
Other Interface : VGA Voice Input / The Sound Output /
DC Power Jack / Parallel LPT Port I/O
Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter : 110V-240V The adaptive communication power supply
Battery Life : The specific time depending on the use environment

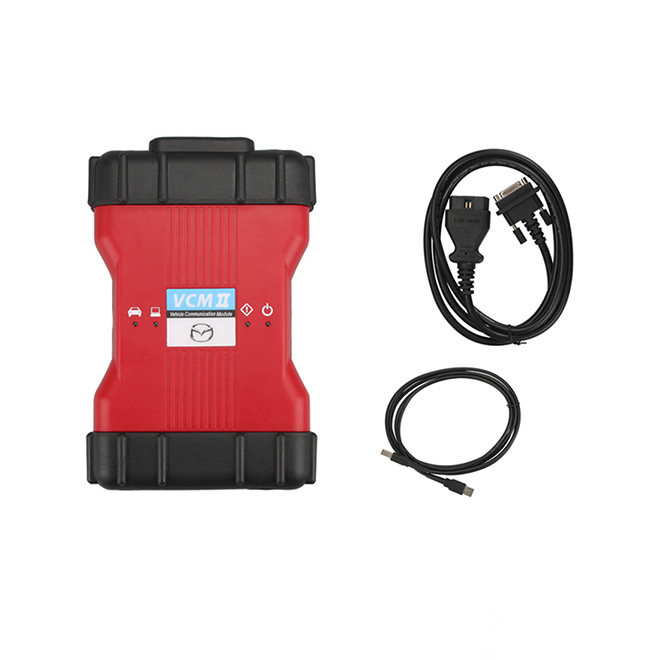

– VCM2 Mazda interface
– CFR cable VP-2 Vehicle Data Recorder (Optional)
– OBD2 cable
– USB cable
– EVG7 DL46/HDD500GB-SSD256GB/DDR4GB (With HDD/SSD VCM II Mazda IDS-106)
– Li-Ion Battery
– Power Adapter
– User’s Manual Download .PDF
– Quick Start Guide Download .PDF
– USB memory card for drivers
